Planetary Gearbox Manufacturer in Ahmedabad, Gujarat
Gyros Gears Industries®
Built for High Torque. Engineered for Heavy Duty.
Gyros Gears Industries® is a trusted Planetary Gearbox manufacturer in Ahmedabad, Gujarat, delivering compact, high-torque, and long-life planetary gear solutions for continuous and heavy-load industrial applications. Our planetary gearboxes are built for maximum torque density, high efficiency, and reliable performance across steel, cement, mining, power, material handling, crane/hoist, extrusion, and heavy automation sectors.
BUILT TO ROTATE • BORN TO LAST • SINCE 2007

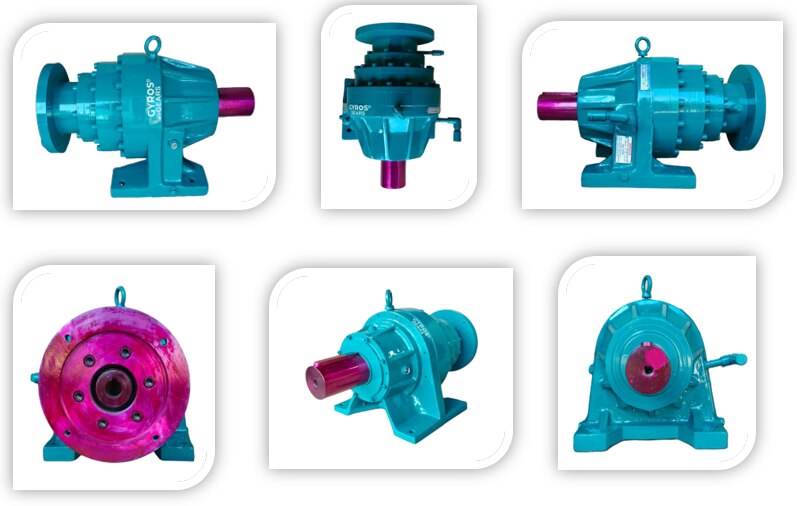

Planetary Gearbox Types We Manufacture
✅ Inline / Coaxial Planetary Gearboxes
Compact design with aligned input-output for space-saving installations.
✅ Right Angle Planetary Gearboxes
Best for limited spaces and special machine orientations.
✅ High Torque Industrial Planetary Gearboxes
Designed for crushers, conveyors, mixers, mills, winches, and heavy rotating equipment.
✅ Planetary Gearbox for Crane, Hoist & Winch Duty
Heavy-duty gearing to handle high starting torque and braking loads.
✅ Custom Planetary Gearbox Solutions
Special flanges, shafts, housings, ratios, torque ratings, and integration with motors.
Technical Specifications (Typical Range)
Gear Arrangement: 2 / 3 / 4 Stage Planetary (as per torque requirement)
Reduction Ratio Range: 25:1 to 300:1 (custom ratios available)
Torque Capacity: Up to 1,50,000 Nm (model dependent)
Input Power Range: 1.5 kW to 250 kW
Input Speed: Up to 1500 RPM
Efficiency: Up to 95% per stage
Backlash: ≤ 10 arc-min (precision option available)
Duty Cycle: S1 Continuous / Heavy Industrial Duty
Service Factor: 1.5 – 2.5 (application specific)
Construction & Materials
Gears: Case-hardened alloy steel, precision machined
Hardness: 58–62 HRC (ground / shaved as per requirement)
Bearings: Heavy-duty roller bearings for high radial/axial loads
Housing: Rigid cast / fabricated housing for vibration resistance
Sealing: Industrial-grade oil seals for leak-proof performance
Lubrication: Oil bath / forced lubrication options (as required)
Mounting & Output Options
We offer multiple configurations to match your machine design:
Foot / Flange / Face Mount
Hollow Shaft / Solid Shaft Output
Keyway / Splined / Shrink Disc Output
IEC / IS Standard Motor Adaptors
Custom Input & Output Flanges
Applications
Gyros Planetary Gearboxes are widely used in:
Steel & Rolling Mills
Cement Plants & Kilns
Mining & Crushers
Power & Heavy Duty Fans
Conveyors, Mixers, Agitators
Crane / Winch / Hoist Systems
Extrusion Machines & Process Lines
SPM, Automation & Material Handling
Custom Manufacturing in Ahmedabad, Gujarat
As a Gujarat-based gearbox manufacturer, we support OEMs and industries with:
Tailor-made gear ratios
Torque & load calculation support
Reverse engineering & replacement gearboxes
Bulk production with consistent quality
Fast dispatch for standard models

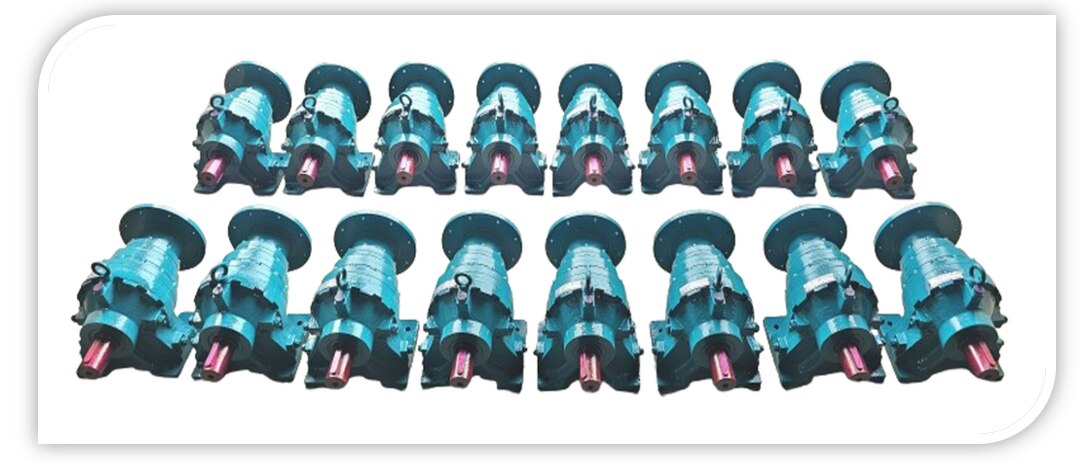

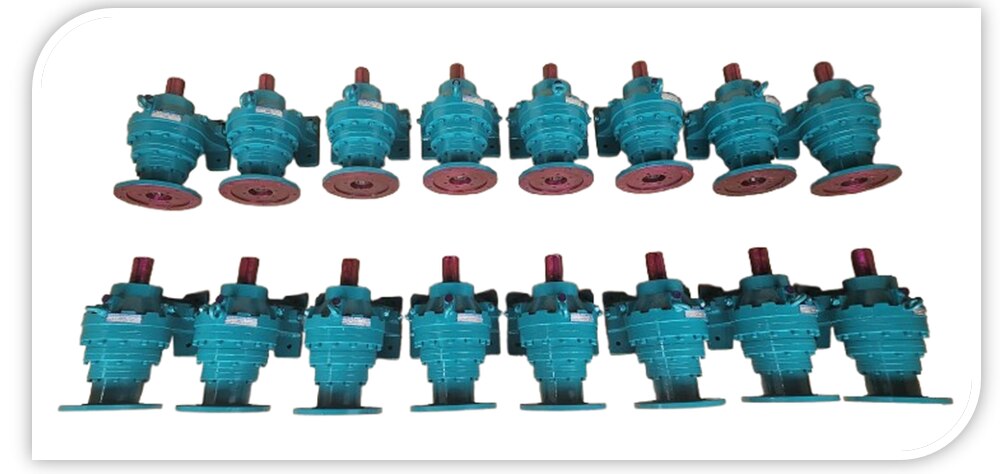

Large-Scale Production of Planetary Gearboxes
Gyros Gears Industries® is a trusted planetary gearbox manufacturer from Ahmedabad, Gujarat, known for its large-scale production capability, precision engineering, and consistent quality output. With a strong manufacturing foundation established in 2007, Gyros Gears has successfully delivered bulk quantities of heavy-duty planetary gearboxes to industries across India and overseas.
Our large-scale planetary gearbox production facility is designed to handle high-volume orders without compromising accuracy or performance. From housing machining to gear cutting, heat treatment, assembly, and testing—every process is executed in-house under strict quality control.This enables us to maintain uniformity across batches,ensuring that every gearbox meets the same torque, efficiency,and durability standards.
Gyros planetary gea
rboxes are manufactured in multiple sizes, stages, and ratios, making them suitable for demanding applications such as steel plants, cement industries, power plants, mining, cranes, winches, material handling systems, and heavy industrial machinery. Our production setup supports customized ratios, mounting arrangements, shaft configurations, and duty conditions, even for large-quantity requirements.
Backed by advanced machinery, skilled manpower, and decades of gear-design expertise,GyrosGearsIndustries® stands out as a reliable partner for customers seeking bulk planetary gearbox supply with assured delivery timelines.
.
Why Choose Gyros Planetary Gearboxes?
High Torque in Compact Size (excellent torque-to-weight ratio)
Heavy-Duty Construction for shock loads and continuous duty
High Efficiency with optimized gear geometry
Low Backlash Options for precision applications
Custom Ratios & Mounting as per machine requirement
Quality-Controlled Manufacturing with strict inspection standards
Get a Quote / Technical Support
Tell us your requirement and we’ll suggest the right model:
Required details:
Input power (kW/HP)
Input speed (RPM)
Required output speed (RPM) / Ratio
Torque requirement (Nm)
Mounting position & application
Duty cycle & working hours/day
📩 Contact Gyros Gears Industries® – Ahmedabad, Gujarat
