Screw Jack Manufacturer in Gujarat – Heavy-Duty Industrial Lifting Solutions
When industrial applications require precise lifting, lowering, pushing, pulling, positioning, or holding of heavy loads, screw jacks provide a dependable mechanical solution. For industries searching for a reliable screw jack manufacturer in Gujarat, selecting the correct capacity, screw type, travel length, mounting arrangement, and operating speed is critical for safe and long-term performance.
Gyros Gears Industries, Ahmedabad, Gujarat, manufactures industrial screw jacks for a wide range of lifting and positioning applications. Screw jacks can be supplied in standard as well as customized configurations to suit machine builders, steel plants, material-handling systems, infrastructure projects, and heavy engineering applications.
What Is an Industrial Screw Jack?

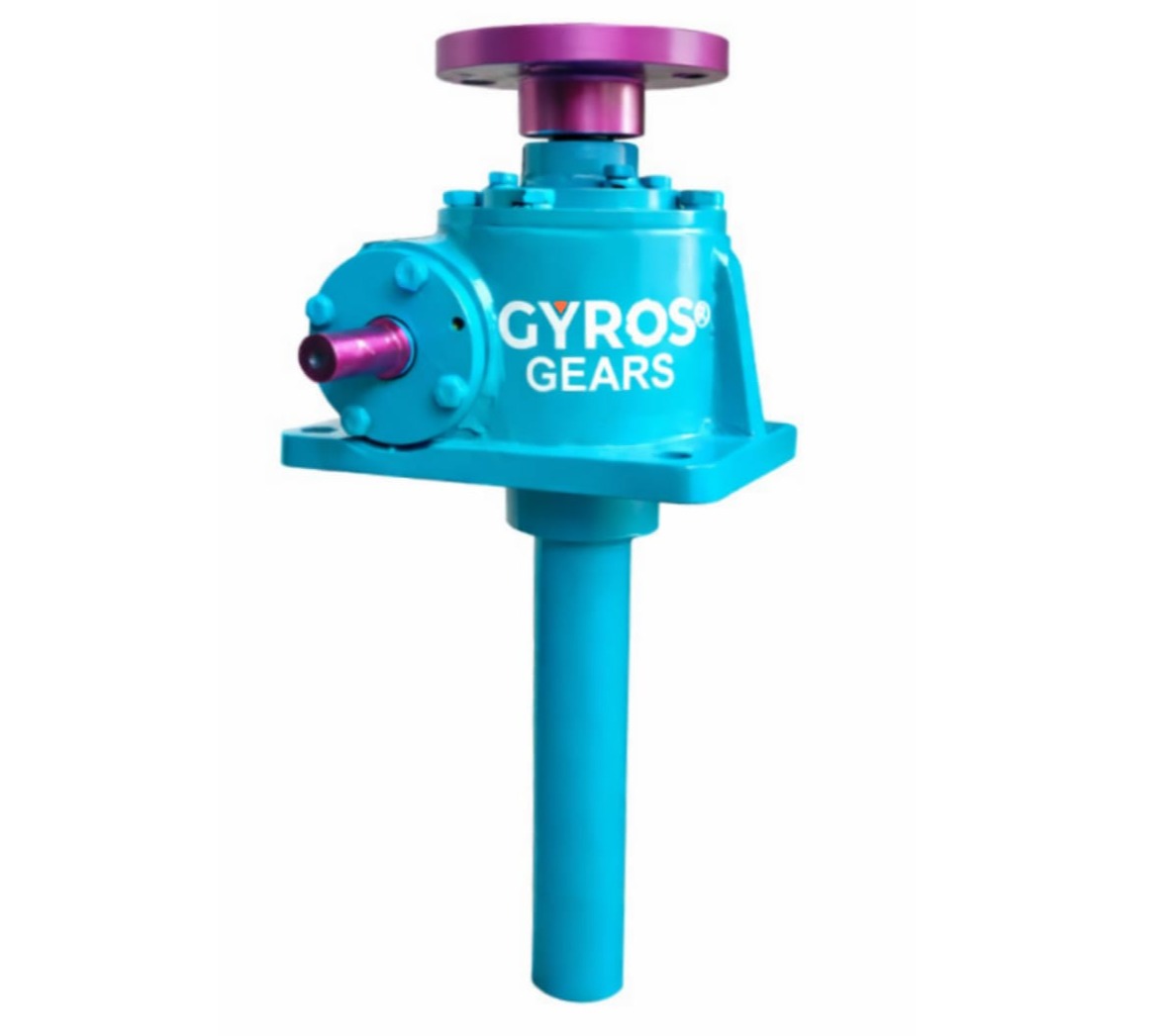

A screw jack is a mechanical lifting device that converts rotary input motion into linear movement. The rotary input can be provided manually or through an electric motor, geared motor, worm gearbox, bevel gearbox, or other drive system.
As the input shaft rotates, the internal gearing operates the lifting screw or traveling nut, allowing the load to move vertically or horizontally in a controlled manner.
Industrial screw jacks are commonly selected where the application demands:
- Controlled and accurate linear movement
- Heavy load handling
- Low-speed lifting
- Synchronized lifting at multiple points
- Reliable load positioning
- Compact mechanical construction
- Integration with geared motors and transmission systems
Screw Jack Capacity Range
Gyros Gears manufactures heavy-duty screw jacks with lifting capacities ranging from approximately 0.5 Ton to 300 Tons, depending on application requirements.
Available capacities can include:
0.5 Ton, 1 Ton, 2 Ton, 5 Ton, 10 Ton, 15 Ton, 20 Ton, 25 Ton, 30 Ton, 50 Ton, 75 Ton, 100 Ton, 150 Ton, 200 Ton and up to 300 Ton heavy-duty screw jack configurations.
Customized capacities can also be developed after evaluating the actual working load, operating frequency, stroke length, mounting arrangement, safety factor, and environmental conditions.
Technical Specifications of Industrial Screw Jacks
The technical configuration of a screw jack depends on the actual application rather than lifting capacity alone.
Typical industrial screw jack specifications include:
Lifting Capacity: Approximately 0.5 Ton to 300 Tons.
Travel / Stroke Length: Can be customized according to the required linear movement. Travel lengths up to approximately 1000 mm or more can be considered depending on screw diameter, buckling conditions, speed, load, and installation arrangement.
Screw Type: Machine screw / Acme or trapezoidal screw configurations can be provided. Ball screw arrangements may also be considered for applications requiring higher efficiency and smoother movement.
Operating Direction: Screw jacks can be designed for lifting, lowering, pushing, pulling, pressing, tensioning, or positioning operations.
Input Arrangement: Manual handwheel, electric motor, geared motor, worm gearbox, bevel gearbox, or interconnected shaft-driven arrangement.
Mounting Arrangement: Foot mounting, flange mounting, upright mounting, inverted mounting, or customized installation arrangements can be developed according to machine design.
Screw Movement: Translating screw and rotating screw designs can be selected based on available installation space and application requirements.
Output Speed: The lifting speed depends on input RPM, gear ratio, screw lead, load capacity, duty cycle, and overall system configuration.
Safety Factor: The required safety factor is selected after considering static load, dynamic load, impact load, operating frequency, and critical application conditions.
Safety Nut: A safety nut can be incorporated in applications requiring additional protection against excessive wear or failure of the main load-carrying nut.
Housing: Heavy-duty cast iron, fabricated steel, or application-specific housing can be considered depending upon screw jack capacity and service conditions.
Lubrication: Grease or oil lubrication is selected according to the internal construction, operating speed, load, temperature, and duty cycle.
Types of Screw Jacks
Translating Screw Jack
In a translating screw jack, the lifting screw moves linearly upward or downward while being prevented from rotating.
This design is commonly used for:
- Machine lifting
- Platform adjustment
- Industrial gates
- Material handling
- Heavy equipment positioning
- Pressing and supporting applications
Rotating Screw Jack
In a rotating screw jack, the lifting screw rotates while a traveling nut moves along the screw.
This configuration is useful when the screw needs to remain fixed in position or when machine design makes a traveling nut arrangement more suitable.
Worm Gear Screw Jack
A worm gear screw jack uses a worm and worm wheel mechanism to convert input rotation into controlled linear motion.
This design offers:
- Compact construction
- High mechanical reduction
- Controlled lifting
- High torque capacity
- Easy integration with geared motors
- Suitable operation for heavy industrial loads
Ball Screw Jack
Ball screw jacks are suitable where applications require higher mechanical efficiency, reduced friction, smoother movement, and comparatively higher operating speeds.
Because ball screws generally have lower self-locking characteristics, suitable braking or holding arrangements should be considered where necessary.
Heavy-Duty Screw Jacks Up to 300 Tons
For steel plants, infrastructure projects, heavy machinery, construction equipment, and large industrial installations, standard light-duty lifting devices may not be sufficient.
Heavy-duty screw jacks can be engineered for loads such as:
- 100 Ton Screw Jack
- 150 Ton Screw Jack
- 200 Ton Screw Jack
- 300 Ton Screw Jack
For these capacities, engineering evaluation becomes particularly important. The design must consider load distribution, screw buckling, screw diameter, nut strength, bearing capacity, gear strength, housing rigidity, lubrication, mounting conditions, input torque, and required safety factor.
Multi-Screw Jack Synchronization Systems
Large machines often require several lifting points to move simultaneously.
Multiple screw jacks can be synchronized using:
- Connecting shafts
- Couplings
- Bevel gearboxes
- Electric motors
- Geared motors
- Distribution gearboxes
For example, four screw jacks installed at the corners of a platform can be mechanically connected so that the complete platform rises or lowers uniformly.
This type of synchronized screw jack system is commonly used in:
- Lifting platforms
- Furnace equipment
- Roller adjustment systems
- Material-handling machinery
- Industrial presses
- Heavy machine positioning
- Stage and platform lifting systems
Applications of Screw Jacks
Industrial screw jacks are widely used across different sectors because of their controlled lifting and positioning capability.
Steel Plants
Screw jacks can be used for roller adjustment, equipment alignment, platform lifting, furnace-related equipment, transfer systems, and positioning mechanisms.
Rolling Mills
They can support roll adjustment, machine positioning, lifting systems, and other controlled linear movement requirements.
Cement Plants
Screw jacks are suitable for gates, material-handling equipment, machinery adjustment, and maintenance lifting systems.
Power Plants
Applications include equipment positioning, dampers, gates, maintenance platforms, and other heavy-duty adjustment mechanisms.
Material Handling
Screw jacks can be integrated into conveyor systems, lifting platforms, transfer mechanisms, and synchronized industrial lifting arrangements.
Infrastructure and Construction
Heavy-duty screw jacks can be used where controlled positioning or lifting of structures and machinery is required.
Heavy Engineering
Machine manufacturers use screw jacks for presses, fixtures, positioning tables, industrial automation, assembly equipment, and customized lifting systems.
Other industries include mining, chemical plants, paper mills, sugar plants, oil and gas, marine, textile machinery, cable plants, automation equipment, and general engineering industries.
How to Select the Correct Screw Jack
Selecting a screw jack only by tonnage can result in incorrect sizing.
Before finalizing the screw jack, the following information should be considered:
Actual Load: Specify the total load and load acting on each screw jack.
Required Stroke: Mention the exact lifting or travel distance required.
Lifting Speed: Define how quickly the load needs to move.
Duty Cycle: Mention how frequently the screw jack will operate and how long each operating cycle lasts.
Mounting Position: Vertical, horizontal, upright, inverted, or other installation arrangement.
Number of Screw Jacks: Mention whether the system requires a single jack or synchronized multiple-jack arrangement.
Input Source: Manual handwheel, electric motor, geared motor, or another transmission system.
Environmental Conditions: Temperature, dust, moisture, corrosive atmosphere, indoor or outdoor installation should be considered.
Dynamic or Static Load: It is important to know whether the jack is simply holding a load or repeatedly lifting a moving load.
Providing these details helps the manufacturer select the appropriate screw size, gearbox ratio, motor power, lifting speed, housing, bearings, safety factor, and overall configuration.
Customized Screw Jack Manufacturer in Gujarat
Many industrial applications cannot be handled using an off-the-shelf screw jack.
Customized screw jacks can be engineered according to:
- Required lifting capacity
- Special stroke length
- Restricted installation space
- Custom screw diameter
- Special input shaft arrangement
- Vertical or horizontal mounting
- Safety nut requirement
- Multi-jack synchronization
- Motorized operation
- Geared motor selection
- Special mounting dimensions
- Application-specific duty cycle
A customized approach is particularly valuable when replacing an existing imported or discontinued screw jack, developing a new machine, or upgrading the lifting capacity of existing equipment.
Screw Jack Manufacturing in Ahmedabad, Gujarat
Ahmedabad is one of Gujarat's major engineering and manufacturing hubs, providing convenient industrial connectivity to customers throughout the state.
A Gujarat-based screw jack manufacturer can serve industries located in and around:
Ahmedabad, Vadodara, Surat, Rajkot, Bharuch, Ankleshwar, Vapi, Gandhinagar, Sanand, Dahej, Hazira, Kutch, Morbi, Jamnagar and other industrial regions of Gujarat.
Screw jacks can also be supplied for industrial requirements across India.
Why Engineering Details Matter Before Manufacturing
A 20 Ton screw jack required for a short-stroke static application may have a completely different design from another 20 Ton screw jack operating continuously with a long stroke.
Factors such as buckling length, screw lead, input speed, travel length, duty cycle, starting torque, side load and operating temperature can substantially influence design.
For this reason, providing a GA drawing, existing screw jack drawing, equipment photograph, nameplate, required capacity, stroke, input RPM and mounting dimensions helps in selecting or manufacturing the correct solution.
Frequently Asked Questions
Who manufactures screw jacks in Gujarat?
Gyros Gears Industries manufactures industrial screw jacks in Ahmedabad, Gujarat, for customized lifting, positioning, pushing, pulling, and synchronized lifting applications.
What capacity screw jacks are available?
Industrial screw jacks can be manufactured from approximately 0.5 Ton up to 300 Tons, depending on the application and engineering requirements.
Can a 200 Ton or 300 Ton screw jack be manufactured?
Yes. Heavy-duty screw jacks with capacities such as 150 Ton, 200 Ton and 300 Ton can be engineered for specialized industrial applications after reviewing load, stroke, duty cycle, input speed, mounting, and safety requirements.
Can screw jack stroke length be customized?
Yes. The lifting stroke can be customized according to application requirements, subject to engineering checks such as screw diameter, unsupported length, buckling, load, and operating speed.
Can multiple screw jacks operate together?
Yes. Multiple screw jacks can be synchronized using connecting shafts, couplings, bevel gearboxes, distribution arrangements, and a common drive system.
Can a geared motor be supplied with a screw jack?
Yes. Screw jack systems can be integrated with electric motors, worm gearboxes, helical geared motors, bevel gearboxes, or other suitable drive arrangements depending on required lifting speed and torque.
Are screw jacks suitable for vertical as well as horizontal operation?
Yes, depending on the selected design and mounting configuration. However, horizontal installations require additional consideration of screw support, alignment, lubrication, and side-loading conditions.
What details are required for a screw jack quotation?
For accurate selection and quotation, provide the required capacity, stroke length, lifting speed, input RPM, mounting position, quantity, duty cycle, motor details, existing drawing, GA drawing or equipment photographs, wherever available.
Looking for a Screw Jack Manufacturer in Gujarat?
If your application requires a standard or customized industrial screw jack, selecting the correct design is essential for reliable operation and longer service life.
Gyros Gears Industries offers screw jack solutions for light-duty to extremely heavy-duty industrial lifting applications, with capacities extending up to 300 Tons.
For a technically suitable recommendation, share your:
Required lifting capacity • Stroke length • Lifting speed • Mounting arrangement • Input RPM • Motor power • Duty cycle • Quantity • GA drawing or existing screw jack details
Our engineering team can evaluate the requirement and recommend an appropriate screw jack configuration for your application.
