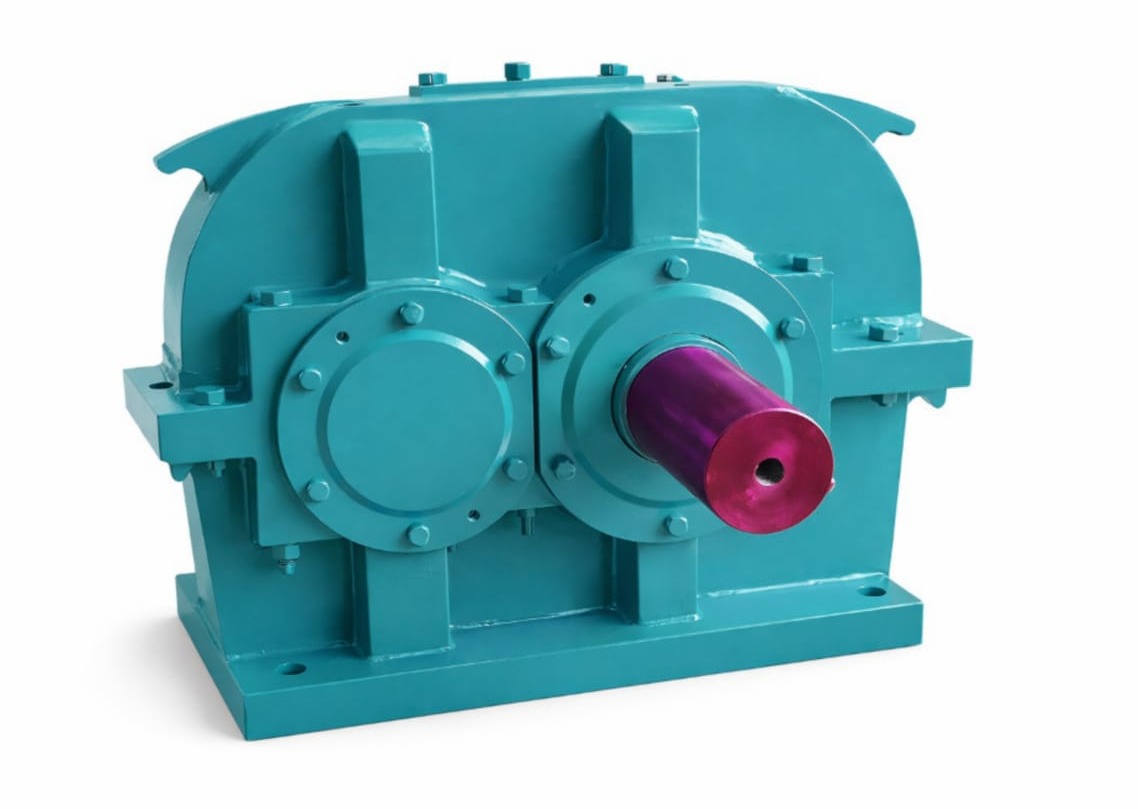

Parallel Shaft Helical Gearbox Manufacturer in India
A parallel shaft helical gearbox is widely used in industrial applications where high torque, smooth power transmission, compact installation, and reliable continuous-duty operation are required. With the input and output shafts arranged parallel to each other, this gearbox design provides an efficient solution for conveyors, material handling systems, steel plants, cement plants, cranes, mining equipment, and other heavy-duty machinery.
Gyros Gears Industries®, Ahmedabad, Gujarat, manufactures standard and customized parallel shaft helical gearboxes in India for a wide range of industrial power transmission requirements.
What Is a Parallel Shaft Helical Gearbox?
A parallel shaft helical gearbox is a speed reduction gearbox in which the input shaft and output shaft are positioned parallel to each other.
Power is transmitted through precision-manufactured helical gears. Because the gear teeth are cut at an angle, engagement takes place gradually rather than suddenly. This provides smoother operation, reduced vibration, lower noise, and better load distribution compared with conventional spur gear arrangements.
Parallel shaft gearboxes are particularly suitable for applications where a large output torque is required but installation space is limited.
Technical Specifications
Gyros Gears can manufacture parallel shaft helical gearboxes according to application-specific requirements.
Typical technical specifications include:
Power Range: Approximately 12 kW to 5000 kW, depending on gearbox size, ratio, speed, duty, and application.
Gear Ratio: Approximately 1.5:1 to 125:1 or customized according to the required output speed.
Input Speed: Common industrial input speeds such as 750 RPM, 960 RPM, 1000 RPM, 1440 RPM, 1500 RPM, or application-specific speeds can be considered.
Output Speed: Determined according to the selected reduction ratio and input RPM.
Gear Type: Precision-machined helical gears.
Number of Stages: Single-stage, double-stage, triple-stage, or multi-stage arrangements depending on the required reduction ratio.
Output Torque: Designed according to transmitted power, gearbox ratio, application load, duty cycle, and service factor.
Mounting: Foot mounted, flange mounted, shaft mounted, or customized mounting arrangement.
Output Shaft: Solid shaft or hollow shaft configuration can be provided depending on the machine arrangement.
Input Arrangement: Direct motor coupling, flexible coupling, geared motor arrangement, pulley input, or customized input shaft.
Rotation: Clockwise or counter-clockwise rotation according to application requirements.
Duty: Suitable configurations can be designed for continuous-duty and heavy-duty industrial service.
Housing: Cast iron, fabricated steel, or application-specific heavy-duty gearbox housing.
Lubrication: Oil bath or suitable industrial lubrication system depending on gearbox size and operating conditions.
Why Use Helical Gears?
Helical gears provide several advantages for industrial gearboxes because multiple teeth remain in contact during power transmission.
This results in:
- Smooth torque transmission
- Reduced vibration
- Lower operating noise
- Higher load-carrying capability
- Improved gear tooth contact
- Better performance under continuous-duty conditions
- Reliable transmission at higher speeds
- Longer operating life when correctly selected and maintained
Advantages of Parallel Shaft Helical Gearboxes
High Torque Capacity
Parallel shaft gearboxes are suitable for applications requiring high output torque at reduced speed.
Compact Design
The parallel arrangement of shafts allows the gearbox to provide a relatively compact installation compared with some other transmission arrangements.
High Transmission Efficiency
Helical gear drives provide efficient mechanical power transmission when properly designed, aligned, and lubricated.
Smooth and Quiet Operation
Gradual tooth engagement reduces shock loading and helps minimize noise and vibration.
Suitable for Continuous Operation
Properly selected parallel shaft helical gearboxes can be used in continuous industrial processes where equipment operates for extended periods.
Customized Configurations
Gear ratio, shaft size, mounting arrangement, motor selection, housing design, output shaft, and overall dimensions can be customized according to the machine requirement.
Applications of Parallel Shaft Helical Gearboxes
Steel Plants
Used in:
- Roller tables
- Conveyors
- Ladle handling equipment
- Continuous casting equipment
- Material transfer systems
- Rolling mill machinery
- Process equipment
Cement Plants
Suitable for:
- Belt conveyors
- Screw conveyors
- Bucket elevators
- Crushers
- Feeders
- Material handling systems
Mining Industry
Parallel shaft gearboxes can be used in:
- Heavy-duty conveyors
- Crushers
- Screening systems
- Feeders
- Mineral processing machinery
Material Handling
Used in:
- Belt conveyors
- Chain conveyors
- Transfer systems
- Lifting equipment
- Industrial handling machinery
Crane and Hoist Applications
Heavy-duty configurations can be used for:
- Crane travel drives
- Hoisting machinery
- Trolley drives
- Material lifting systems
Power Plants
Applications can include:
- Coal handling plants
- Ash handling systems
- Conveyors
- Auxiliary mechanical drives
Parallel shaft helical gearboxes are also used in chemical plants, paper mills, sugar plants, textile machinery, infrastructure projects, marine equipment, cable plants, food processing equipment, and general engineering industries.
Parallel Shaft Helical Gearbox vs Worm Gearbox
A worm gearbox is commonly used where a high reduction ratio is required in a compact right-angle arrangement.
A parallel shaft helical gearbox is generally preferred where the application requires:
- Higher mechanical efficiency
- Continuous-duty performance
- High transmitted power
- High output torque
- Parallel input and output shaft arrangement
- Reduced heat generation
- Smooth operation
The correct gearbox type should always be selected according to torque, power, speed, duty cycle, available space, and shaft orientation.
Parallel Shaft Helical Gearbox vs Inline Helical Gearbox
An inline helical gearbox normally has the input and output shafts positioned on the same axis.
A parallel shaft helical gearbox positions both shafts parallel but offset from each other.
A parallel shaft arrangement is therefore useful where machine layout does not permit a coaxial drive or where a compact high-torque transmission arrangement is required.
F-Series Parallel Shaft Helical Gearbox
F-Series gearboxes are commonly associated with parallel shaft helical drive arrangements.
Depending on the application, an F-Series geared motor can be supplied with:
- Electric motor
- Solid output shaft
- Hollow output shaft
- Foot mounting
- Flange mounting
- Shaft mounting
- Different gear ratios
- Customized motor power
- Application-specific output speed
These gearboxes are widely used in conveyor and material handling applications.
Customized Parallel Shaft Helical Gearbox Manufacturer in India
Industrial gearbox requirements often differ significantly from one application to another.
Gyros Gears can manufacture customized gearboxes based on:
- Required motor power
- Input RPM
- Required output RPM
- Gear ratio
- Output torque
- Service factor
- Operating hours per day
- Starting frequency
- Shock load
- Shaft dimensions
- Mounting arrangement
- Space limitations
- Existing gearbox dimensions
- Existing foundation dimensions
Customized gearboxes can also be developed for replacement applications where the customer wants to install a new gearbox without making major changes to the existing machine or foundation.
Replacement Parallel Shaft Gearboxes
For replacement requirements, customers can share:
- Existing gearbox nameplate
- GA drawing
- Input shaft dimensions
- Output shaft dimensions
- Centre distance
- Mounting hole dimensions
- Motor details
- Existing ratio
- Application details
- Gearbox photographs
Based on these details, a suitable replacement or customized gearbox configuration can be evaluated.
How to Select the Right Parallel Shaft Helical Gearbox
Selecting a gearbox only based on motor power is not recommended.
The following parameters should be considered:
Motor Power: Specify the actual installed motor power in kW or HP.
Input RPM: Mention the motor or input shaft speed.
Required Output RPM: Define the speed required at the driven machine.
Gear Ratio: Can be calculated from input RPM and required output RPM.
Output Torque: The gearbox must have sufficient torque capacity for the driven equipment.
Service Factor: The design should consider actual operating conditions, shock load, operating hours, and starts per hour.
Application: Conveyor, crane, rolling mill, crusher, mixer, feeder, or another industrial machine.
Duty Cycle: Mention whether operation is intermittent or continuous.
Mounting: Foot, flange, shaft mounted, horizontal, vertical, or customized.
Shaft Requirement: Specify solid or hollow output shaft and required dimensions.
Providing complete application details helps in selecting a gearbox with the correct ratio, torque capacity, bearing arrangement, gear size, service factor, and housing.
Parallel Shaft Helical Gearbox Manufacturer in Ahmedabad
Gyros Gears Industries is based in Ahmedabad, Gujarat, and supplies industrial gearboxes for requirements across India.
Parallel shaft helical gearbox requirements can be served for industries located in:
Gujarat, Maharashtra, Rajasthan, Madhya Pradesh, Uttar Pradesh, Haryana, Punjab, Jharkhand, Chhattisgarh, West Bengal, Karnataka, Telangana, Andhra Pradesh, Tamil Nadu, Odisha, Delhi and other regions across India.
Why Choose Gyros Gears Industries?
Gyros Gears focuses on industrial gearbox solutions for both standard and special applications.
Key capabilities include:
- Parallel shaft helical gearbox manufacturing
- Customized gearbox design
- Heavy-duty gearbox solutions
- F-Series geared motors
- High-torque gearbox configurations
- Replacement gearbox development
- Custom shaft arrangements
- Different gear ratios
- Gearbox and geared motor combinations
- Industrial power transmission solutions
Frequently Asked Questions
Who manufactures parallel shaft helical gearboxes in India?
Gyros Gears Industries manufactures standard and customized parallel shaft helical gearboxes in Ahmedabad, Gujarat, for industrial applications across India.
What is the gear ratio of a parallel shaft helical gearbox?
Ratios can vary according to the gearbox design and number of reduction stages. Configurations from approximately 1.5:1 to 125:1 can be considered, with customized ratios developed according to the application.
What power range is available?
Industrial parallel shaft helical gearboxes can be developed for a broad power range, including approximately 12 kW to 5000 kW, depending on design, ratio, torque, input speed, and duty conditions.
Can a parallel shaft gearbox be supplied with a motor?
Yes. The gearbox can be supplied as a complete parallel shaft helical geared motor with a suitable electric motor.
Is a hollow output shaft available?
Yes. Both solid and hollow output shaft arrangements can be considered depending on the application.
Can an existing gearbox be replaced with the same mounting dimensions?
Customized replacement gearboxes can be developed after reviewing the existing GA drawing, shaft dimensions, foundation dimensions, gear ratio, motor power, and operating application.
Which industries use parallel shaft helical gearboxes?
They are widely used in steel, cement, mining, power, material handling, crane, sugar, paper, chemical, infrastructure, cable, textile, and other heavy engineering industries.
Looking for a Parallel Shaft Helical Gearbox Manufacturer in India?
If you require a standard, customized, heavy-duty, or replacement parallel shaft helical gearbox, share your technical requirement with Gyros Gears Industries.
For accurate gearbox selection and quotation, provide:
Motor Power • Input RPM • Output RPM • Gear Ratio • Application • Required Torque • Duty Cycle • Mounting Position • Shaft Dimensions • Existing GA Drawing or Nameplate
Gyros Gears Industries®
Ahmedabad, Gujarat, India
Parallel Shaft Helical Gearboxes • F-Series Gear Motors • Planetary Gearboxes • Worm Gearboxes • Bevel Gearboxes • Industrial Screw Jacks
Built to Rotate • Born to Last • Since 2007.
