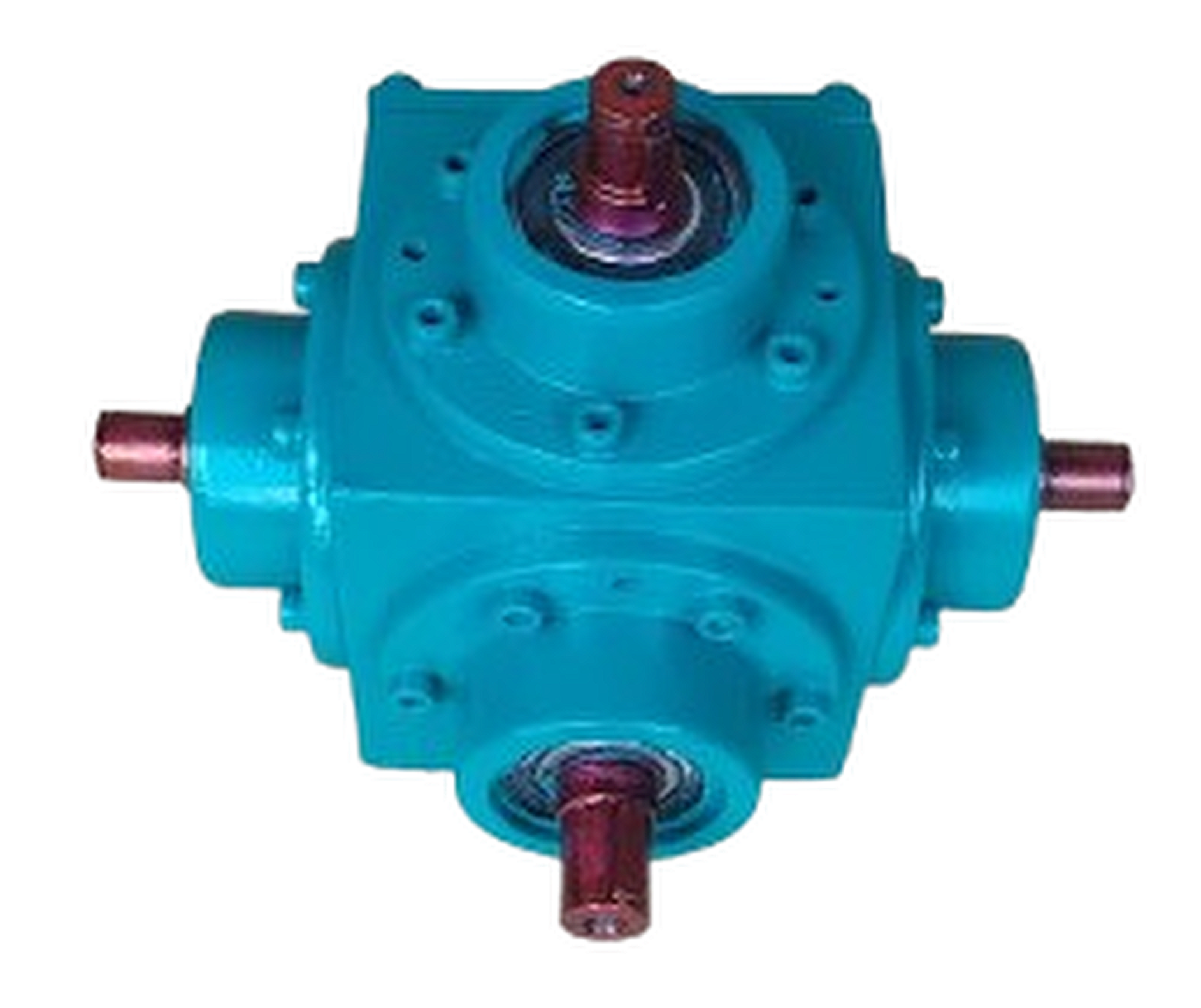

BEVEL GEARBOX WITH THREE INPUTS & ONE OUTPUT
Product Overview
Gyros Gears Industries® manufactures custom-engineered Bevel Gearboxes with Three Inputs and One Output, designed for applications where power from multiple drives must be combined and transmitted through a single output shaft. These gearboxes are built for high torque, synchronized operation, and continuous industrial duty, ensuring reliable performance in demanding environments.
Technical Specifications
Gearbox Type
Multi-Input Bevel Gearbox (3 Input Shafts : 1 Output Shaft)
Gear Arrangement
Spiral Bevel / Straight Bevel Gears (as per application requirement)
Number of Inputs
3 Independent Input Shafts
(Suitable for motor / engine / gearbox coupling)
Number of Outputs
1 Common Output Shaft (Combined Power Transmission)
Reduction Ratio
Customized ratios available
Typical range: 1:1 to 10:1
(Higher ratios available with multi-stage design)
Input Power Capacity
Up to 150 kW (combined)
(Customized as per torque & duty cycle)
Output Torque Capacity
Up to 1,20,000 Nm (model dependent)
Input Speed
Up to 1500 RPM
Output Speed
As per selected ratio & combined input speed
Construction & Materials
- Gears: Case-hardened alloy steel
- Gear Hardness: 58–62 HRC
- Housing: Cast iron / SG iron / fabricated steel
- Shafts: High-strength EN8 / EN24 steel
- Bearings: Heavy-duty tapered roller / spherical roller bearings
- Sealing: Industrial oil seals with optional labyrinth seals
Mounting & Design Options
- Horizontal / Vertical / Customized mounting
- Foot-mounted or Flange-mounted
- Hollow or Solid Output Shaft
- Forced lubrication (optional for high-speed duty)
- Encoder, brake, or backstop provision (optional)
Lubrication
- Grease / oil lubrication (standard)
- ISO VG 220 / 320 gear oil
- Forced lubrication system for continuous heavy duty (optional)
Performance Features
- Smooth and synchronized power combining
- High mechanical efficiency
- Low vibration & noise operation
- Rugged construction for continuous duty
- Long service life with minimal maintenance
Typical Applications
- Cable manufacturing machinery
- Steel & rolling mills
- Heavy conveyors & material handling systems
- Mixing & blending equipment
- Power combining drives
- Special purpose industrial machines
Why Choose Gyros Gears Industries®
✔ Custom-engineered solutions
✔ Heavy-duty industrial design
✔ Precision-machined gears
✔ Proven performance in critical applications
✔ Made in India – Trusted globally
At Gyros Gears Industries, every gearbox is Built to Rotate, Born to Last.
Explore our complete range at www.gyrosgears.com
